KRÄNZLE therm RP-Serie | Hochdruckreiniger Heisswasser

Pressure Washer

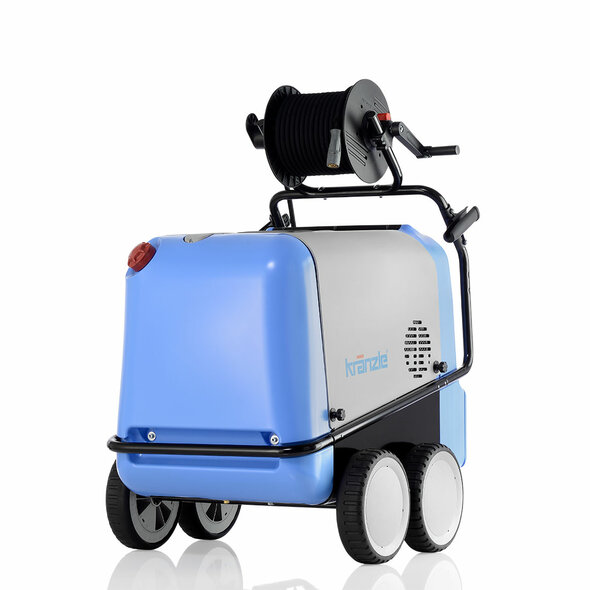

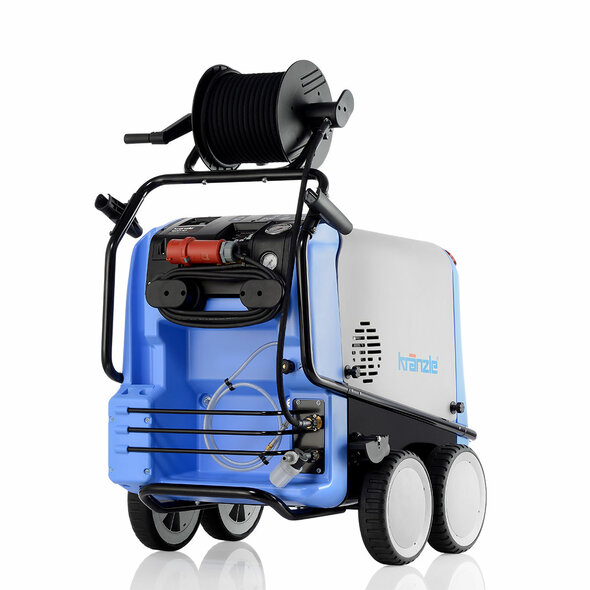

therm-RP 1600 T | EH

Ord. no. 638860

The Kränzle therm-RP series is particularly suitable for applications where an above-average flushing effect at high working pressure is required. Thanks to the innovative in-line pump, these hot water units offer a water output of up to 1600 l/h as well as other convincing features.

Quick release plug-in system D12
Kränzle in-line RP pump
Total-stop system with delayed motor cut-of
Safety shutdown
Pressure regulation
Twist-Stop screw connection
Cleaning Agent Intake
Locking brake
Direct suction: Suction height 2.5 m
Water tank: Volume 12 liters
Stainless steel heating coil
Digital thermostat
Flow monitor
Combustion chamber pre-ventilation
Visual flame monitoring
Overheating protection
Burner stops when there is a lack of heating oil
Operating hours meter
Fuel tank: 35 liters
Removable covers
Accessory storage
Digital control panel
Visual flame monitoring and Overheating protection
Convenient integrated hose reel

Operating pressure: 70-150 bar

Water output: 26.7 l/min

Connection Voltage: 400 V

Connection Phase: 3 ~

Connection Frequency: 50 Hz

Hot water output: 12-80 °C

Technical details

		therm-RP 1200 \| EH Ord. no. 638452	therm-RP 1200 T \| EH Ord. no. 638462	therm-RP 1400 \| EH Ord. no. 638650	therm-RP 1400 T \| EH Ord. no. 638660	therm-RP 1600 \| EH Ord. no. 638850	therm-RP 1600 T \| EH Ord. no. 638860
Ord. no.		638452	638462	638650	638660	638850	638860
Quick release plug-in system		therm-RP 1200 \| EH D12 none	therm-RP 1200 T \| EH D12 none	therm-RP 1400 \| EH D12 none	therm-RP 1400 T \| EH D12 none	therm-RP 1600 \| EH D12 none	therm-RP 1600 T \| EH D12 none
Operating pressure	bar	therm-RP 1200 \| EH 70-190 bar	therm-RP 1200 T \| EH 70-190 bar	therm-RP 1400 \| EH 70-170 bar	therm-RP 1400 T \| EH 70-170 bar	therm-RP 1600 \| EH 70-150 bar	therm-RP 1600 T \| EH 70-150 bar
Operating pressure	MPa	therm-RP 1200 \| EH 7-19 MPa	therm-RP 1200 T \| EH 7-19 MPa	therm-RP 1400 \| EH 7-17 MPa	therm-RP 1400 T \| EH 7-17 MPa	therm-RP 1600 \| EH 7-15 MPa	therm-RP 1600 T \| EH 7-15 MPa
Water output	l/h	therm-RP 1200 \| EH 1200 l/h	therm-RP 1200 T \| EH 1200 l/h	therm-RP 1400 \| EH 1400 l/h	therm-RP 1400 T \| EH 1400 l/h	therm-RP 1600 \| EH 1600 l/h	therm-RP 1600 T \| EH 1600 l/h
Admissible overpressure	bar	therm-RP 1200 \| EH 210 bar	therm-RP 1200 T \| EH 210 bar	therm-RP 1400 \| EH 190 bar	therm-RP 1400 T \| EH 190 bar	therm-RP 1600 \| EH 170 bar	therm-RP 1600 T \| EH 170 bar
Admissible overpressure	MPa	therm-RP 1200 \| EH 21 MPa	therm-RP 1200 T \| EH 21 MPa	therm-RP 1400 \| EH 19 MPa	therm-RP 1400 T \| EH 19 MPa	therm-RP 1600 \| EH 17 MPa	therm-RP 1600 T \| EH 17 MPa
Motor speed	U/min	therm-RP 1200 \| EH 1400 U/min	therm-RP 1200 T \| EH 1400 U/min	therm-RP 1400 \| EH 1400 U/min	therm-RP 1400 T \| EH 1400 U/min	therm-RP 1600 \| EH 1400 U/min	therm-RP 1600 T \| EH 1400 U/min
Connection Voltage	V	therm-RP 1200 \| EH 400 V	therm-RP 1200 T \| EH 400 V	therm-RP 1400 \| EH 400 V	therm-RP 1400 T \| EH 400 V	therm-RP 1600 \| EH 400 V	therm-RP 1600 T \| EH 400 V
Connection Phase	~	therm-RP 1200 \| EH 3 ~	therm-RP 1200 T \| EH 3 ~	therm-RP 1400 \| EH 3 ~	therm-RP 1400 T \| EH 3 ~	therm-RP 1600 \| EH 3 ~	therm-RP 1600 T \| EH 3 ~
Connection Frequency	Hz	therm-RP 1200 \| EH 50 Hz	therm-RP 1200 T \| EH 50 Hz	therm-RP 1400 \| EH 50 Hz	therm-RP 1400 T \| EH 50 Hz	therm-RP 1600 \| EH 50 Hz	therm-RP 1600 T \| EH 50 Hz
Connection Amperage	A	therm-RP 1200 \| EH 14,3 A	therm-RP 1200 T \| EH 14,3 A	therm-RP 1400 \| EH 14,3 A	therm-RP 1400 T \| EH 14,3 A	therm-RP 1600 \| EH 14,3 A	therm-RP 1600 T \| EH 14,3 A
Power intake	kW	therm-RP 1200 \| EH 8 kW	therm-RP 1200 T \| EH 7,5 kW	therm-RP 1400 \| EH 8 kW	therm-RP 1400 T \| EH 8 kW	therm-RP 1600 \| EH 8 kW	therm-RP 1600 T \| EH 8 kW
Power output	kW	therm-RP 1200 \| EH 6,3 kW	therm-RP 1200 T \| EH 5,5 kW	therm-RP 1400 \| EH 6,3 kW	therm-RP 1400 T \| EH 6,3 kW	therm-RP 1600 \| EH 6,3 kW	therm-RP 1600 T \| EH 6,3 kW
Power supply cable Length	m	therm-RP 1200 \| EH 7.5 m	therm-RP 1200 T \| EH 7.5 m	therm-RP 1400 \| EH 7.5 m	therm-RP 1400 T \| EH 7.5 m	therm-RP 1600 \| EH 7.5 m	therm-RP 1600 T \| EH 7.5 m
Length	mm	therm-RP 1200 \| EH 1050 mm	therm-RP 1200 T \| EH 1050 mm	therm-RP 1400 \| EH 1050 mm	therm-RP 1400 T \| EH 1050 mm	therm-RP 1600 \| EH 1050 mm	therm-RP 1600 T \| EH 1050 mm
Width	mm	therm-RP 1200 \| EH 800 mm	therm-RP 1200 T \| EH 800 mm	therm-RP 1400 \| EH 800 mm	therm-RP 1400 T \| EH 800 mm	therm-RP 1600 \| EH 800 mm	therm-RP 1600 T \| EH 800 mm
Height	mm	therm-RP 1200 \| EH 1050 mm	therm-RP 1200 T \| EH 1300 mm	therm-RP 1400 \| EH 1015 mm	therm-RP 1400 T \| EH 1300 mm	therm-RP 1600 \| EH 1015 mm	therm-RP 1600 T \| EH 1300 mm
Hot water output	°C	therm-RP 1200 \| EH 12-80 °C	therm-RP 1200 T \| EH 12-80 °C	therm-RP 1400 \| EH 12-80 °C	therm-RP 1400 T \| EH 12-80 °C	therm-RP 1600 \| EH 12-80 °C	therm-RP 1600 T \| EH 12-80 °C
Steam level	°C	therm-RP 1200 \| EH 140 °C	therm-RP 1200 T \| EH 140 °C	therm-RP 1400 \| EH 140 °C	therm-RP 1400 T \| EH 140 °C	therm-RP 1600 \| EH 140 °C	therm-RP 1600 T \| EH 140 °C
Oil consumption at max. heating output	kg/h	therm-RP 1200 \| EH 7.7 kg/h	therm-RP 1200 T \| EH 7.7 kg/h	therm-RP 1400 \| EH 7.7 kg/h	therm-RP 1400 T \| EH 7.7 kg/h	therm-RP 1600 \| EH 7.7 kg/h	therm-RP 1600 T \| EH 7.7 kg/h
Oil consumption at max. heating output	l/h	therm-RP 1200 \| EH 9.2 l/h	therm-RP 1200 T \| EH 9.2 l/h	therm-RP 1400 \| EH 9.2 l/h	therm-RP 1400 T \| EH 9.2 l/h	therm-RP 1600 \| EH 9.2 l/h	therm-RP 1600 T \| EH 9.2 l/h
Oil consumption T45	kg/h	therm-RP 1200 \| EH 5.6 kg/h	therm-RP 1200 T \| EH 5.6 kg/h	therm-RP 1400 \| EH 5.6 kg/h	therm-RP 1400 T \| EH 5.6 kg/h	therm-RP 1600 \| EH 5.6 kg/h	therm-RP 1600 T \| EH 5.6 kg/h
Oil consumption T45	l/h	therm-RP 1200 \| EH 6.6 l/h	therm-RP 1200 T \| EH 6.6 l/h	therm-RP 1400 \| EH 6.6 l/h	therm-RP 1400 T \| EH 6.6 l/h	therm-RP 1600 \| EH 6.6 l/h	therm-RP 1600 T \| EH 6.6 l/h
Heating output	kW	therm-RP 1200 \| EH 84 kW	therm-RP 1200 T \| EH 84 kW	therm-RP 1400 \| EH 84 kW	therm-RP 1400 T \| EH 84 kW	therm-RP 1600 \| EH 84 kW	therm-RP 1600 T \| EH 84 kW
Plug		therm-RP 1200 \| EH CEE 16 A none	therm-RP 1200 T \| EH CEE 16 A none	therm-RP 1400 \| EH 32A CEE-Stecker (rot) none	therm-RP 1400 T \| EH 32A CEE-Stecker (rot) none	therm-RP 1600 \| EH 32A CEE-Stecker (rot) none	therm-RP 1600 T \| EH 32A CEE-Stecker (rot) none
Weight	kg	therm-RP 1200 \| EH 210 kg	therm-RP 1200 T \| EH 218 kg	therm-RP 1400 \| EH 210 kg	therm-RP 1400 T \| EH 218 kg	therm-RP 1600 \| EH 210 kg	therm-RP 1600 T \| EH 218 kg

Equipment

Accessories included in delivery

back to list

		therm-RP 1200 \| EH Ord. no. 638452	therm-RP 1200 T \| EH Ord. no. 638462	therm-RP 1400 \| EH Ord. no. 638650	therm-RP 1400 T \| EH Ord. no. 638660	therm-RP 1600 \| EH Ord. no. 638850	therm-RP 1600 T \| EH Ord. no. 638860
Ord. no.		638452	638462	638650	638660	638850	638860
Quick release plug-in system		therm-RP 1200 \| EH D12 none	therm-RP 1200 T \| EH D12 none	therm-RP 1400 \| EH D12 none	therm-RP 1400 T \| EH D12 none	therm-RP 1600 \| EH D12 none	therm-RP 1600 T \| EH D12 none
Operating pressure	bar	therm-RP 1200 \| EH 70-190 bar	therm-RP 1200 T \| EH 70-190 bar	therm-RP 1400 \| EH 70-170 bar	therm-RP 1400 T \| EH 70-170 bar	therm-RP 1600 \| EH 70-150 bar	therm-RP 1600 T \| EH 70-150 bar
Operating pressure	MPa	therm-RP 1200 \| EH 7-19 MPa	therm-RP 1200 T \| EH 7-19 MPa	therm-RP 1400 \| EH 7-17 MPa	therm-RP 1400 T \| EH 7-17 MPa	therm-RP 1600 \| EH 7-15 MPa	therm-RP 1600 T \| EH 7-15 MPa
Water output	l/h	therm-RP 1200 \| EH 1200 l/h	therm-RP 1200 T \| EH 1200 l/h	therm-RP 1400 \| EH 1400 l/h	therm-RP 1400 T \| EH 1400 l/h	therm-RP 1600 \| EH 1600 l/h	therm-RP 1600 T \| EH 1600 l/h
Admissible overpressure	bar	therm-RP 1200 \| EH 210 bar	therm-RP 1200 T \| EH 210 bar	therm-RP 1400 \| EH 190 bar	therm-RP 1400 T \| EH 190 bar	therm-RP 1600 \| EH 170 bar	therm-RP 1600 T \| EH 170 bar
Admissible overpressure	MPa	therm-RP 1200 \| EH 21 MPa	therm-RP 1200 T \| EH 21 MPa	therm-RP 1400 \| EH 19 MPa	therm-RP 1400 T \| EH 19 MPa	therm-RP 1600 \| EH 17 MPa	therm-RP 1600 T \| EH 17 MPa
Motor speed	U/min	therm-RP 1200 \| EH 1400 U/min	therm-RP 1200 T \| EH 1400 U/min	therm-RP 1400 \| EH 1400 U/min	therm-RP 1400 T \| EH 1400 U/min	therm-RP 1600 \| EH 1400 U/min	therm-RP 1600 T \| EH 1400 U/min
Connection Voltage	V	therm-RP 1200 \| EH 400 V	therm-RP 1200 T \| EH 400 V	therm-RP 1400 \| EH 400 V	therm-RP 1400 T \| EH 400 V	therm-RP 1600 \| EH 400 V	therm-RP 1600 T \| EH 400 V
Connection Phase	~	therm-RP 1200 \| EH 3 ~	therm-RP 1200 T \| EH 3 ~	therm-RP 1400 \| EH 3 ~	therm-RP 1400 T \| EH 3 ~	therm-RP 1600 \| EH 3 ~	therm-RP 1600 T \| EH 3 ~
Connection Frequency	Hz	therm-RP 1200 \| EH 50 Hz	therm-RP 1200 T \| EH 50 Hz	therm-RP 1400 \| EH 50 Hz	therm-RP 1400 T \| EH 50 Hz	therm-RP 1600 \| EH 50 Hz	therm-RP 1600 T \| EH 50 Hz
Connection Amperage	A	therm-RP 1200 \| EH 14,3 A	therm-RP 1200 T \| EH 14,3 A	therm-RP 1400 \| EH 14,3 A	therm-RP 1400 T \| EH 14,3 A	therm-RP 1600 \| EH 14,3 A	therm-RP 1600 T \| EH 14,3 A
Power intake	kW	therm-RP 1200 \| EH 8 kW	therm-RP 1200 T \| EH 7,5 kW	therm-RP 1400 \| EH 8 kW	therm-RP 1400 T \| EH 8 kW	therm-RP 1600 \| EH 8 kW	therm-RP 1600 T \| EH 8 kW
Power output	kW	therm-RP 1200 \| EH 6,3 kW	therm-RP 1200 T \| EH 5,5 kW	therm-RP 1400 \| EH 6,3 kW	therm-RP 1400 T \| EH 6,3 kW	therm-RP 1600 \| EH 6,3 kW	therm-RP 1600 T \| EH 6,3 kW
Power supply cable Length	m	therm-RP 1200 \| EH 7.5 m	therm-RP 1200 T \| EH 7.5 m	therm-RP 1400 \| EH 7.5 m	therm-RP 1400 T \| EH 7.5 m	therm-RP 1600 \| EH 7.5 m	therm-RP 1600 T \| EH 7.5 m
Length	mm	therm-RP 1200 \| EH 1050 mm	therm-RP 1200 T \| EH 1050 mm	therm-RP 1400 \| EH 1050 mm	therm-RP 1400 T \| EH 1050 mm	therm-RP 1600 \| EH 1050 mm	therm-RP 1600 T \| EH 1050 mm
Width	mm	therm-RP 1200 \| EH 800 mm	therm-RP 1200 T \| EH 800 mm	therm-RP 1400 \| EH 800 mm	therm-RP 1400 T \| EH 800 mm	therm-RP 1600 \| EH 800 mm	therm-RP 1600 T \| EH 800 mm
Height	mm	therm-RP 1200 \| EH 1050 mm	therm-RP 1200 T \| EH 1300 mm	therm-RP 1400 \| EH 1015 mm	therm-RP 1400 T \| EH 1300 mm	therm-RP 1600 \| EH 1015 mm	therm-RP 1600 T \| EH 1300 mm
Hot water output	°C	therm-RP 1200 \| EH 12-80 °C	therm-RP 1200 T \| EH 12-80 °C	therm-RP 1400 \| EH 12-80 °C	therm-RP 1400 T \| EH 12-80 °C	therm-RP 1600 \| EH 12-80 °C	therm-RP 1600 T \| EH 12-80 °C
Steam level	°C	therm-RP 1200 \| EH 140 °C	therm-RP 1200 T \| EH 140 °C	therm-RP 1400 \| EH 140 °C	therm-RP 1400 T \| EH 140 °C	therm-RP 1600 \| EH 140 °C	therm-RP 1600 T \| EH 140 °C
Oil consumption at max. heating output	kg/h	therm-RP 1200 \| EH 7.7 kg/h	therm-RP 1200 T \| EH 7.7 kg/h	therm-RP 1400 \| EH 7.7 kg/h	therm-RP 1400 T \| EH 7.7 kg/h	therm-RP 1600 \| EH 7.7 kg/h	therm-RP 1600 T \| EH 7.7 kg/h
Oil consumption at max. heating output	l/h	therm-RP 1200 \| EH 9.2 l/h	therm-RP 1200 T \| EH 9.2 l/h	therm-RP 1400 \| EH 9.2 l/h	therm-RP 1400 T \| EH 9.2 l/h	therm-RP 1600 \| EH 9.2 l/h	therm-RP 1600 T \| EH 9.2 l/h
Oil consumption T45	kg/h	therm-RP 1200 \| EH 5.6 kg/h	therm-RP 1200 T \| EH 5.6 kg/h	therm-RP 1400 \| EH 5.6 kg/h	therm-RP 1400 T \| EH 5.6 kg/h	therm-RP 1600 \| EH 5.6 kg/h	therm-RP 1600 T \| EH 5.6 kg/h
Oil consumption T45	l/h	therm-RP 1200 \| EH 6.6 l/h	therm-RP 1200 T \| EH 6.6 l/h	therm-RP 1400 \| EH 6.6 l/h	therm-RP 1400 T \| EH 6.6 l/h	therm-RP 1600 \| EH 6.6 l/h	therm-RP 1600 T \| EH 6.6 l/h
Heating output	kW	therm-RP 1200 \| EH 84 kW	therm-RP 1200 T \| EH 84 kW	therm-RP 1400 \| EH 84 kW	therm-RP 1400 T \| EH 84 kW	therm-RP 1600 \| EH 84 kW	therm-RP 1600 T \| EH 84 kW
Plug		therm-RP 1200 \| EH CEE 16 A none	therm-RP 1200 T \| EH CEE 16 A none	therm-RP 1400 \| EH 32A CEE-Stecker (rot) none	therm-RP 1400 T \| EH 32A CEE-Stecker (rot) none	therm-RP 1600 \| EH 32A CEE-Stecker (rot) none	therm-RP 1600 T \| EH 32A CEE-Stecker (rot) none
Weight	kg	therm-RP 1200 \| EH 210 kg	therm-RP 1200 T \| EH 218 kg	therm-RP 1400 \| EH 210 kg	therm-RP 1400 T \| EH 218 kg	therm-RP 1600 \| EH 210 kg	therm-RP 1600 T \| EH 218 kg

Pressure Washer therm-RP 1600 T | EH

Technical details

Equipment

Accessories included in delivery
