KRÄNZLE therm-RP-Serie mit Automatik-Trommel | Hochdruckreiniger Heisswasser

Pressure Washer

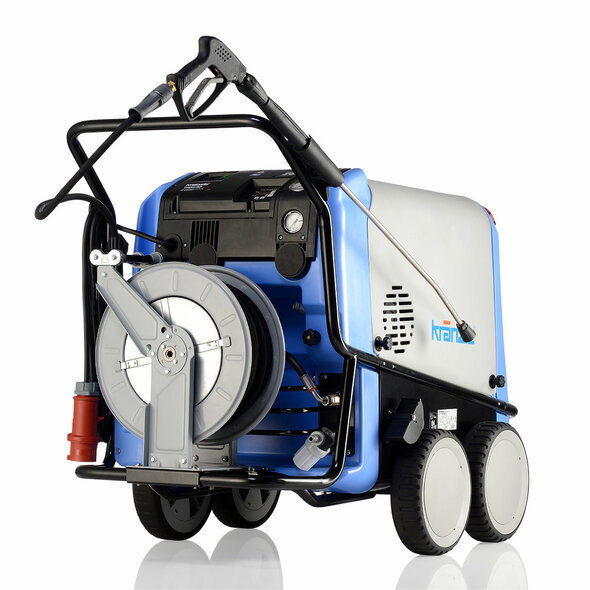

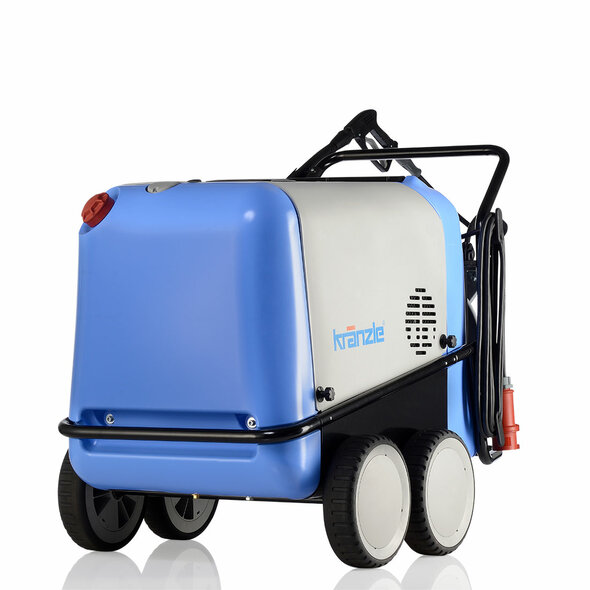

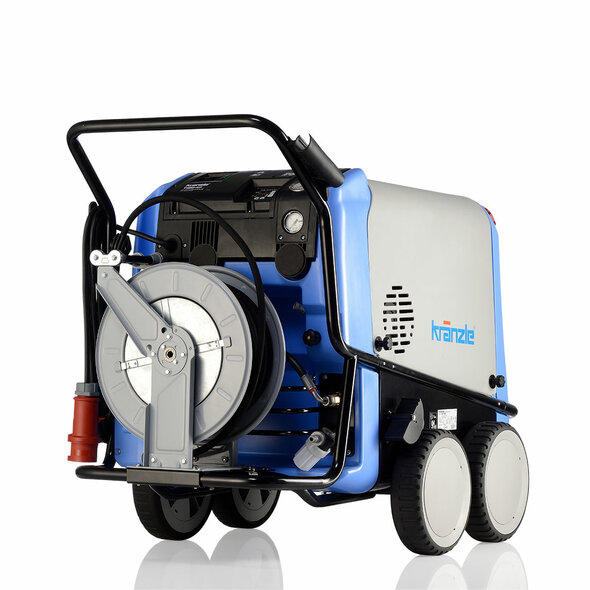

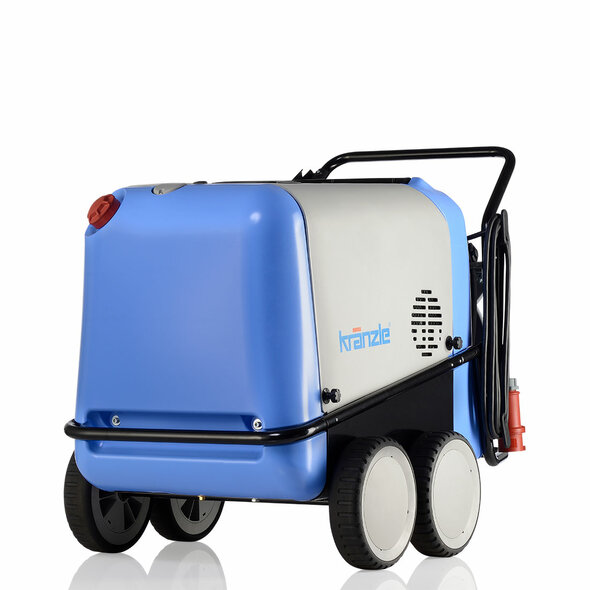

therm-RP 1600 AT

Ord. no. 638820

The Kränzle therm-RP series is particularly suitable for applications where an above-average flushing effect at high working pressure is required. Thanks to the innovative in-line pump, these hot water units offer a water output of up to 1600 l/h as well as other convincing features.

Quick release plug-in system D12

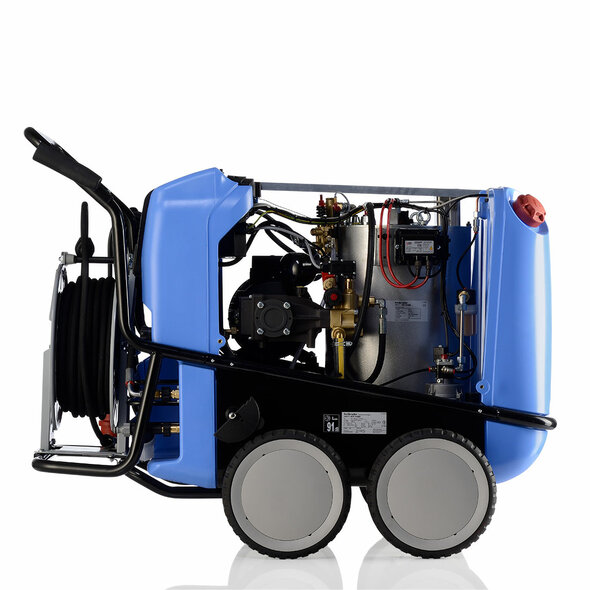

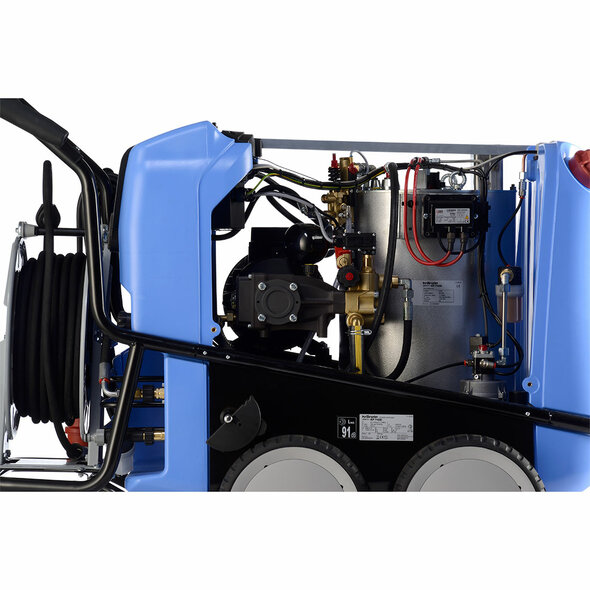

Kränzle in-line RP pump

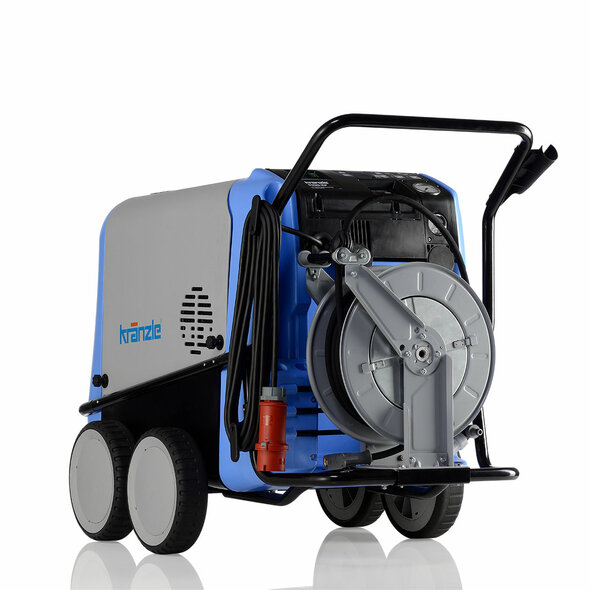

Automatic hose drum
Total-stop system with delayed motor cut-of
Safety shutdown
Pressure regulation
Twist-Stop screw connection
Cleaning Agent Intake
Locking brake
Direct suction: Suction height 2.5 m
Water tank: Volume 12 liters
Digital thermostat
Flow monitor
Combustion chamber pre-ventilation
Visual flame monitoring
Overheating protection
Burner stops when there is a lack of heating oil
Operating hours meter
Fuel tank: 35 liters
Removable covers
Accessory storage
Digital control panel
Visual flame monitoring and Overheating protection

Operating pressure: 70-150 bar

Water output: 26.7 l/min

Connection Voltage: 400 V

Connection Phase: 3 ~

Connection Frequency: 50 Hz

Hot water output: 12-80 °C

Technical details

		therm-RP 900 AT Ord. no. 638120	therm-RP 1000 AT Ord. no. 638222	therm-RP 1200 AT Ord. no. 638422	therm-RP 1400 AT Ord. no. 638620	therm-RP 1600 AT Ord. no. 638820
Ord. no.		638120	638222	638422	638620	638820
Quick release plug-in system		therm-RP 900 AT D12 none	therm-RP 1000 AT D12 none	therm-RP 1200 AT D12 none	therm-RP 1400 AT D12 none	therm-RP 1600 AT D12 none
Operating pressure	bar	therm-RP 900 AT 70-170 bar	therm-RP 1000 AT 70-200 bar	therm-RP 1200 AT 70-190 bar	therm-RP 1400 AT 70-170 bar	therm-RP 1600 AT 70-150 bar
Operating pressure	MPa	therm-RP 900 AT 7-17 MPa	therm-RP 1000 AT 7-20 MPa	therm-RP 1200 AT 7-19 MPa	therm-RP 1400 AT 7-17 MPa	therm-RP 1600 AT 7-15 MPa
Water output	l/h	therm-RP 900 AT 900 l/h	therm-RP 1000 AT 1000 l/h	therm-RP 1200 AT 1200 l/h	therm-RP 1400 AT 1400 l/h	therm-RP 1600 AT 1600 l/h
Admissible overpressure	bar	therm-RP 900 AT 190 bar	therm-RP 1000 AT 220 bar	therm-RP 1200 AT 210 bar	therm-RP 1400 AT 190 bar	therm-RP 1600 AT 170 bar
Admissible overpressure	MPa	therm-RP 900 AT 19 MPa	therm-RP 1000 AT 22 MPa	therm-RP 1200 AT 21 MPa	therm-RP 1400 AT 19 MPa	therm-RP 1600 AT 17 MPa
Motor speed	U/min	therm-RP 900 AT 1400 U/min	therm-RP 1000 AT 1400 U/min	therm-RP 1200 AT 1400 U/min	therm-RP 1400 AT 1400 U/min	therm-RP 1600 AT 1400 U/min
Connection Voltage	V	therm-RP 900 AT 400 V	therm-RP 1000 AT 400 V	therm-RP 1200 AT 400 V	therm-RP 1400 AT 400 V	therm-RP 1600 AT 400 V
Connection Phase	~	therm-RP 900 AT 3 ~	therm-RP 1000 AT 3 ~	therm-RP 1200 AT 3 ~	therm-RP 1400 AT 3 ~	therm-RP 1600 AT 3 ~
Connection Frequency	Hz	therm-RP 900 AT 50 Hz	therm-RP 1000 AT 50 Hz	therm-RP 1200 AT 50 Hz	therm-RP 1400 AT 50 Hz	therm-RP 1600 AT 50 Hz
Connection Amperage	A	therm-RP 900 AT 9,4 A	therm-RP 1000 AT 12,5 A	therm-RP 1200 AT 13,5 A	therm-RP 1400 AT 14,3 A	therm-RP 1600 AT 14,3 A
Power intake	kW	therm-RP 900 AT 5,5 kW	therm-RP 1000 AT 7,5 kW	therm-RP 1200 AT 8 kW	therm-RP 1400 AT 8 kW	therm-RP 1600 AT 8 kW
Power output	kW	therm-RP 900 AT 4,0 kW	therm-RP 1000 AT 5,5 kW	therm-RP 1200 AT 6,3 kW	therm-RP 1400 AT 6,3 kW	therm-RP 1600 AT 6,3 kW
Power supply cable Length	m	therm-RP 900 AT 7.5 m	therm-RP 1000 AT 7.5 m	therm-RP 1200 AT 7.5 m	therm-RP 1400 AT 7.5 m	therm-RP 1600 AT 7.5 m
Length	mm	therm-RP 900 AT 1050 mm	therm-RP 1000 AT 1300 mm	therm-RP 1200 AT 1300 mm	therm-RP 1400 AT 1300 mm	therm-RP 1600 AT 1300 mm
Width	mm	therm-RP 900 AT 800 mm	therm-RP 1000 AT 800 mm	therm-RP 1200 AT 800 mm	therm-RP 1400 AT 800 mm	therm-RP 1600 AT 800 mm
Height	mm	therm-RP 900 AT 1015 mm	therm-RP 1000 AT 1015 mm	therm-RP 1200 AT 1015 mm	therm-RP 1400 AT 1015 mm	therm-RP 1600 AT 1015 mm
Hot water output	°C	therm-RP 900 AT 12-85 °C	therm-RP 1000 AT 12-80 °C	therm-RP 1200 AT 12-80 °C	therm-RP 1400 AT 12-80 °C	therm-RP 1600 AT 12-80 °C
Steam level	°C	therm-RP 900 AT 155 °C	therm-RP 1000 AT 140 °C	therm-RP 1200 AT 140 °C	therm-RP 1400 AT 140 °C	therm-RP 1600 AT 140 °C
Oil consumption at max. heating output	kg/h	therm-RP 900 AT 5.8 kg/h	therm-RP 1000 AT 6.0 kg/h	therm-RP 1200 AT 7,7 kg/h	therm-RP 1400 AT 7.7 kg/h	therm-RP 1600 AT 7.7 kg/h
Oil consumption at max. heating output	l/h	therm-RP 900 AT 6.8 l/h	therm-RP 1000 AT 7.0 l/h	therm-RP 1200 AT 9,2 l/h	therm-RP 1400 AT 9.2 l/h	therm-RP 1600 AT 9.2 l/h
Oil consumption T45	kg/h	therm-RP 900 AT 4.2 kg/h	therm-RP 1000 AT 5.6 kg/h	therm-RP 1200 AT 5.6 kg/h	therm-RP 1400 AT 5.6 kg/h	therm-RP 1600 AT 5.6 kg/h
Oil consumption T45	l/h	therm-RP 900 AT 5.0 l/h	therm-RP 1000 AT 6.6 l/h	therm-RP 1200 AT 6.6 l/h	therm-RP 1400 AT 6.6 l/h	therm-RP 1600 AT 6.6 l/h
Heating output	kW	therm-RP 900 AT 60 kW	therm-RP 1000 AT 65 kW	therm-RP 1200 AT 84 kW	therm-RP 1400 AT 84 kW	therm-RP 1600 AT 84 kW
Plug		therm-RP 900 AT 16A CEE-Stecker (rot) none	therm-RP 1000 AT CEE 16 A none	therm-RP 1200 AT CEE 16 A none	therm-RP 1400 AT 32A CEE-Stecker (rot) none	therm-RP 1600 AT 32A CEE-Stecker (rot) none
Weight	kg	therm-RP 900 AT 210 kg	therm-RP 1000 AT 240 kg	therm-RP 1200 AT 240 kg	therm-RP 1400 AT 240 kg	therm-RP 1600 AT 240 kg

Equipment

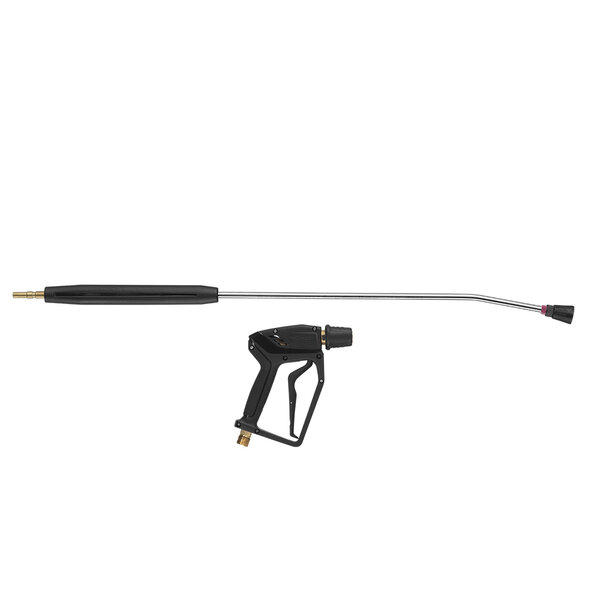

Accessories included in delivery
