KRÄNZLE mittlere quadro-Serie | Hochdruckreiniger Kaltwasser

Pressure Washer

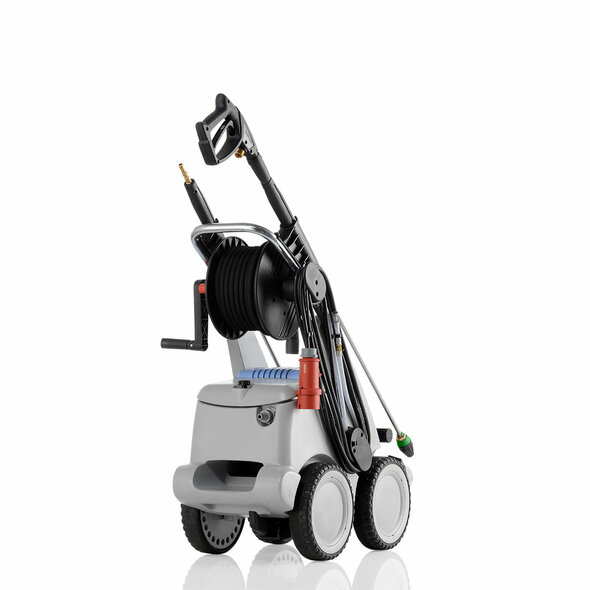

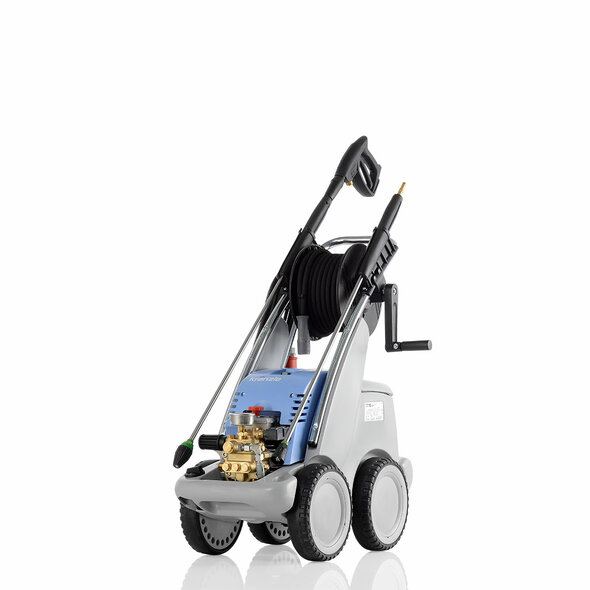

quadro 799 TST

Ord. no. 610100

High-pressure cleaners of the medium quadro series combine all the advantages of the Kränzle Profi series with a robust double-axle chassis with 4 wheels. The chassis ensures a secure footing and a high level of comfort when frequently changing locations. Large gearboxes and oil housings significantly extend the service life in tough continuous operation. And of course, the integrated hose reel with folding crank handle and up to 20 m of high-pressure hose are standard on many quadro models - as are the robust impact protection and integrated water tank.

Quick release plug-in system D12
Total-stop system with delayed motor cut-of
Safety shutdown
Pressure regulation
Twist-Stop screw connection
Cleaning Agent Intake
Roto-mould chassis
Locking brake
Water tank: Volume 10 liters
Accessory storage
Stainless steel pressure gauge
Impact protection
Convenient integrated hose reel

Operating pressure: 30-180 bar

Water output: 13 l/min

Motor speed: 1400 U/min

Connection Voltage: 400 V

Connection Phase: 3 ~

Connection Frequency: 50 Hz

Technical details

		quadro 599 TST Ord. no. 610000	quadro 799 TST Ord. no. 610100	quadro 799 TST NoM Ord. no. 610110	quadro 899 TST Ord. no. 610120
Ord. no.		610000	610100	610110	610120
Quick release plug-in system		quadro 599 TST D12 none	quadro 799 TST D12 none	quadro 799 TST NoM D12 none	quadro 899 TST D12 none
Operating pressure	bar	quadro 599 TST 30-150 bar	quadro 799 TST 30-180 bar	quadro 799 TST NoM 30-180 bar	quadro 899 TST 30-150 bar
Operating pressure	MPa	quadro 599 TST 3-15 MPa	quadro 799 TST 3-18 MPa	quadro 799 TST NoM 3-18 MPa	quadro 899 TST 3-15 MPa
Water output	l/h	quadro 599 TST 600 l/h	quadro 799 TST 780 l/h	quadro 799 TST NoM 780 l/h	quadro 899 TST 900 l/h
Admissible overpressure	bar	quadro 599 TST 165 bar	quadro 799 TST 200 bar	quadro 799 TST NoM 200 bar	quadro 899 TST 170 bar
Admissible overpressure	MPa	quadro 599 TST 16,5 MPa	quadro 799 TST 20 MPa	quadro 799 TST NoM 20 MPa	quadro 899 TST 17 MPa
Motor speed	U/min	quadro 599 TST 1400 U/min	quadro 799 TST 1400 U/min	quadro 799 TST NoM 1400 U/min	quadro 899 TST 1400 U/min
Connection Voltage	V	quadro 599 TST 230 V	quadro 799 TST 400 V	quadro 799 TST NoM 400 V	quadro 899 TST 400 V
Connection Phase	~	quadro 599 TST 1 ~	quadro 799 TST 3 ~	quadro 799 TST NoM 3 ~	quadro 899 TST 3 ~
Connection Frequency	Hz	quadro 599 TST 50 Hz	quadro 799 TST 50 Hz	quadro 799 TST NoM 50 Hz	quadro 899 TST 50 Hz
Connection Amperage	A	quadro 599 TST 14 A	quadro 799 TST 8,5 A	quadro 799 TST NoM 8,5 A	quadro 899 TST 8,5 A
Power intake	kW	quadro 599 TST 3,3 kW	quadro 799 TST 5,5 kW	quadro 799 TST NoM 5,5 kW	quadro 899 TST 5,5 kW
Power output	kW	quadro 599 TST 2,4 kW	quadro 799 TST 4,0 kW	quadro 799 TST NoM 4,0 kW	quadro 899 TST 4,0 kW
Power supply cable Length	m	quadro 599 TST 5 m	quadro 799 TST 7.5 m	quadro 799 TST NoM 7.5 m	quadro 899 TST 7.5 m
Length	mm	quadro 599 TST 780 mm	quadro 799 TST 780 mm	quadro 799 TST NoM 780 mm	quadro 899 TST 780 mm
Width	mm	quadro 599 TST 395 mm	quadro 799 TST 395 mm	quadro 799 TST NoM 395 mm	quadro 899 TST 395 mm
Height	mm	quadro 599 TST 870 mm	quadro 799 TST 870 mm	quadro 799 TST NoM 870 mm	quadro 899 TST 870 mm
Plug		quadro 599 TST Schuko-Stecker none	quadro 799 TST 16A CEE-Stecker (rot) none	quadro 799 TST NoM 16A CEE-Stecker (rot) none	quadro 899 TST 16A CEE-Stecker (rot) none
Weight	kg	quadro 599 TST 63 kg	quadro 799 TST 63 kg	quadro 799 TST NoM 63 kg	quadro 899 TST 63 kg

Equipment

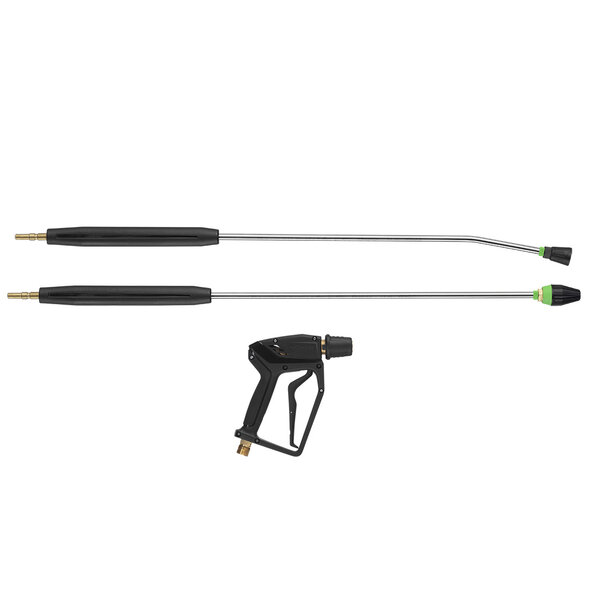

Accessories included in delivery
